Complete Kit Includes:
Paragon Valve (4″, 6″, or 8″) w/ power-loss fill capability

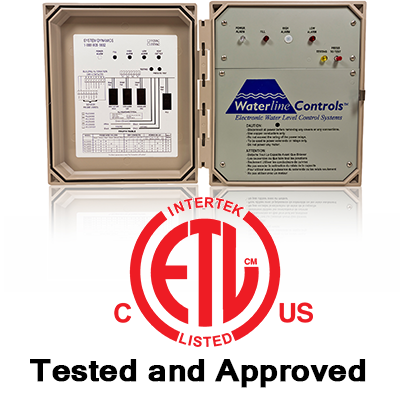

NEMA 4x Control Panel
Sensor w/ 50 ft. cable
Sensor Mounting Assembly
Submittal Package PDFs
- Paragon Valve Included
- Dry contacts to BMS for measuring Fill “ON” time
- Low Water Alarm
- High Water Alarm
- Optional temperature signal @ 40°F per NFPA
- Fill Control w/capability for fill during power loss situations
- Fault conditions
- Operates 110VAC Solenoid Valve
- 110VAC 95db Audible Alarm w/ Silencer Switch Installed in the Panel
The system is automatically controlled within an operating range (this range can be set by custom ordered probes or cutting the current probes to length in the field). The system also monitors for a high water level condition and a low water level condition.
These conditions have three outputs each which are:
- Close a set of dry contacts for the BMS
- Operate a relay rated at 30AMPS / 250VAC
- Turn on an LED to indicate the sensor has tripped
The Fill dry contacts can be used as a comparative to develop a baseline benchmark of water usage for the system.
Custom Sensors lengths available upon request.
