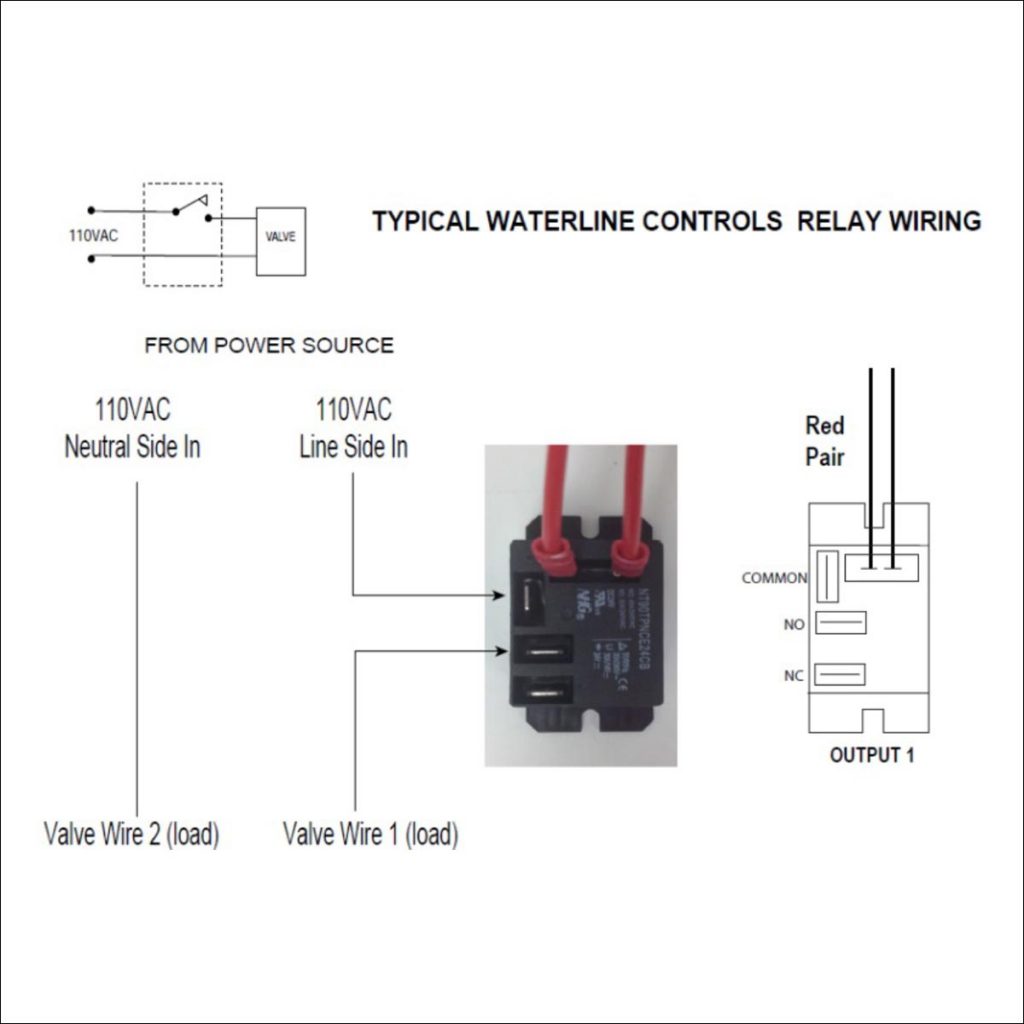

CONNECTING TO POWER RELAYS

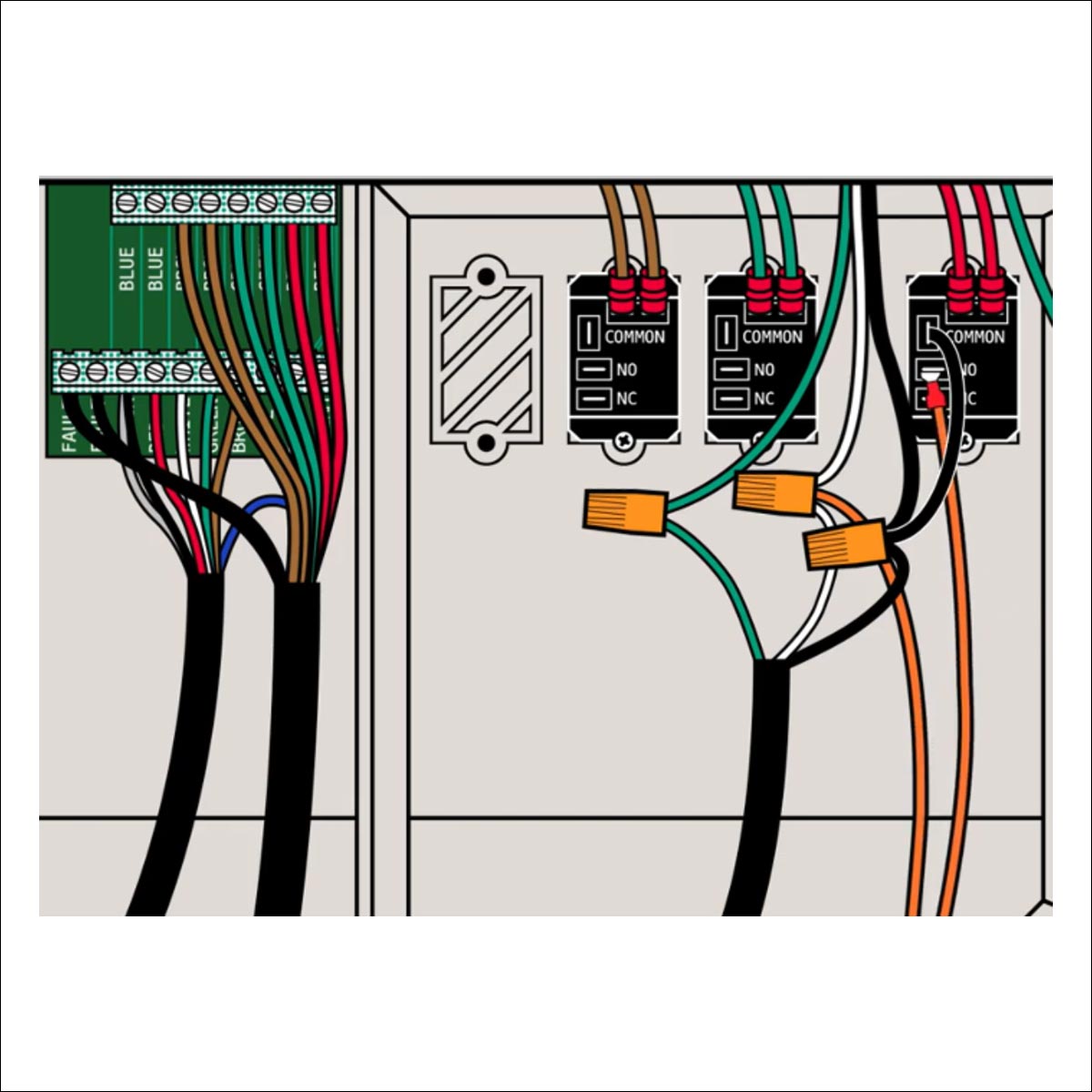

Connecting to a Normally Closed 110VAC Solenoid

  • Connect 110VAC Line or Hot (Black wire) to the Power Relay common (COM)
  • Connect one of the solenoid wires to the Power Relay Normally Open (NO).
  • Connect the other solenoid wire to 110VAC Neutral (White wire).
