SIMPLEX BOOSTER SYSTEM
Waterline Controls
Simplex Booster Pump Systems
Built with quality in mind, the Skid Mounted Booster Stations feature stainless steel construction for maximum durability and corrosion resistance. Designed for a wide range of applications, these systems ensure reliable operation and long-term performance.
Key Features:
- Energy Efficiency
- User-Friendly Interface
- Pump Protection
DESCRIPTION
Waterline Controls proudly introduces the evenFlow Pressure Booster System, designed with small footprints that fit modern mechanical rooms and easily passes through standard doors. These stations are ideal for commercial, Multi-family Residential, Irrigation, and Municipalities, and integrates with all new or existing systems.
Complete Kit Includes:
- 1x Vertical Multistage Pumps 1-5HP, 230/3P, 40GPM – 150GPM
- 1” or 1-1/2” Suction Header

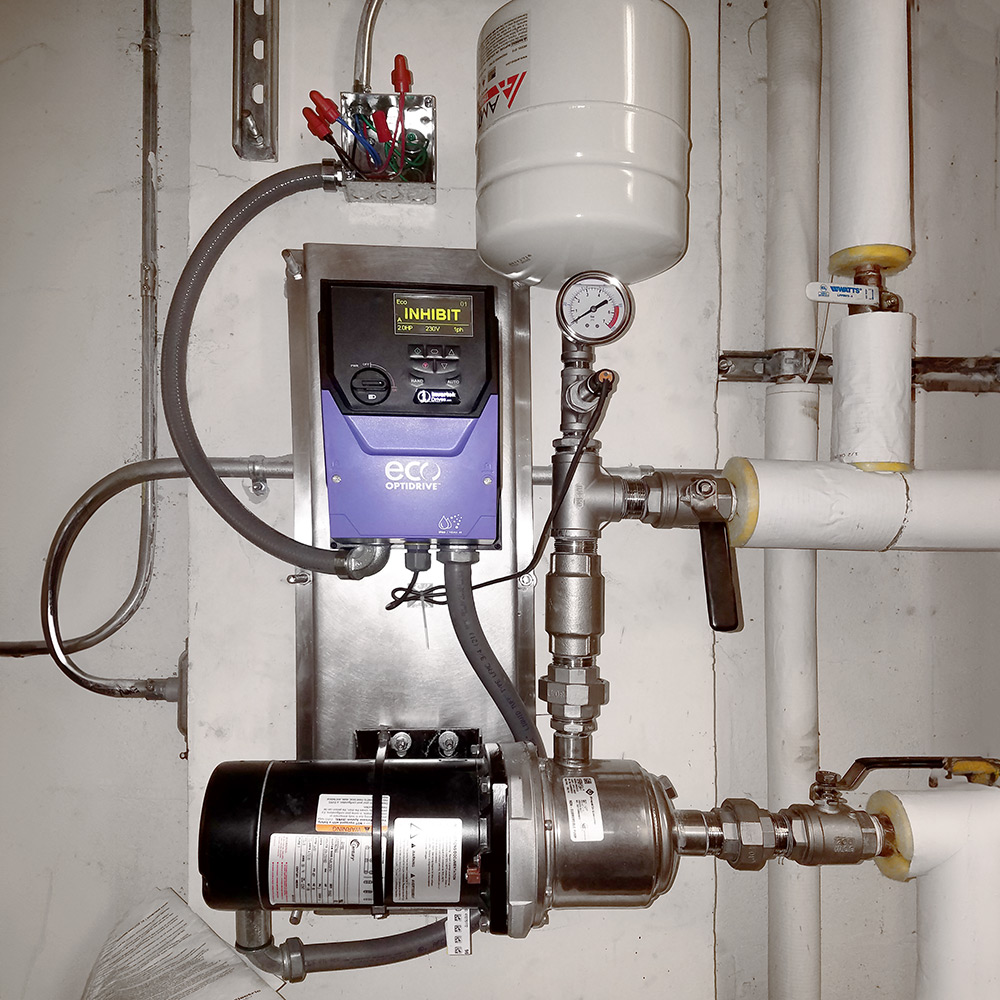

- Floor or Wall mounted
- Stainless Steel or Cast Iron Threaded Check Valves
- Stainless Steel or Cast Iron Threaded Isolated Valve
- 1x Pressure Manifolds w/ Transducer, System Pressure Gauge, and Accessories
- 1x 230/3P VFDs w/ Digital Display, Push-Button Controls, Overload Protection, HOA Switch, Running Lights, Run Timers, Audible Alarms, Cut off Switch
Learn More Here | Call 480-905-1892
Will need to know the number of Water use products in the building, Water Pressure at highest fixture, and Pipe Static to properly size the Booster pump skid. If you are a Reseller, Sales Organization, Distributor, Contractor or an OEM we want to talk with you to determine an SPA price program for your organization so please call us at 480-905-1892 or contact us now.
Installing the evenFlow Pressure Booster System is Simple:
Designed to fit through a 36 door Plumb water in and out, connect power to the single point electrical control box and energize the system. Each system is pre-configured, ensuring fast setup.
Tablet Controlled Adjustments:
Pre-loaded with our app, allows for easy configuration and adjustments through wifi connection.
SPECIFICATIONS
- Pump Configurations: Simplex
- Type of Pumps
- Pump HP
- 1-5HP
- Pump HP
- Stainless Steel Suction Header and Discharge
- 1” (Wall Only)
- 1-1/2” (Floor and Wall)

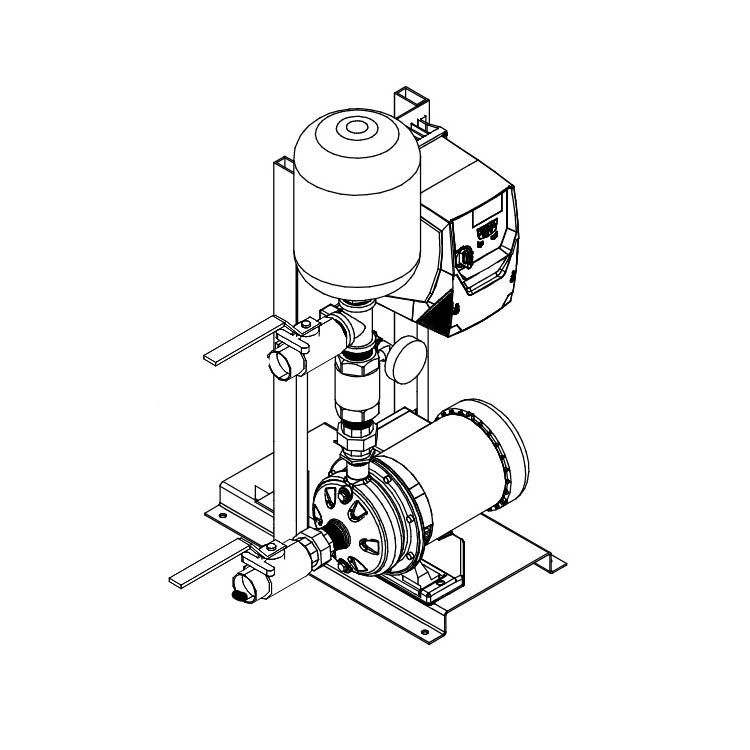

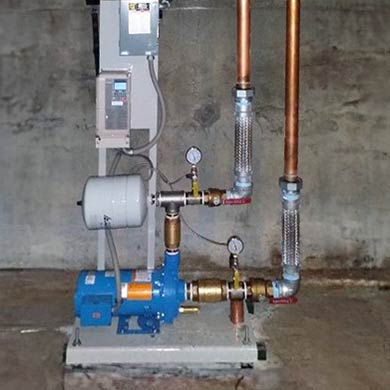

- Floor Stainless Steel Skid Size
- 20”x12.25”x37.2” (37.2” x 31.25”x20” Overall Size)
- Wall Mounted Stainless Steel Skid Size
- 30” x 13” (43.45” x 22.17in overall Size)
- VFD
- 230V/3P
- Stainless Steel Valves
- Pressure Tank
- If needed
- 14-50Gal
- NSF61 Approved Components
- Max Capacity
- GPM
- Max Boost Pressure
- 50 PSI
- Operating PSI
- Up to 50 PSI
WARRANTY
- 12 Months
PROUDLY MADE IN THE U.S.A.
All of our liquid level controls and liquid level sensors are assembled right here in the U.S.A.
where we monitor every step of the process.
NOT SURE WHAT YOU NEED? JUST CALL BECAUSE WE’RE HERE TO HELP! 480-905-1892
