Complete Kit Includes:
-
- Sensor With 50 ft. Sensor Wire*
- Controller
- Mounting Assembly
Submittal Package PDFs
Controller Submittal
Sensor Submittal
Specifications Sheet

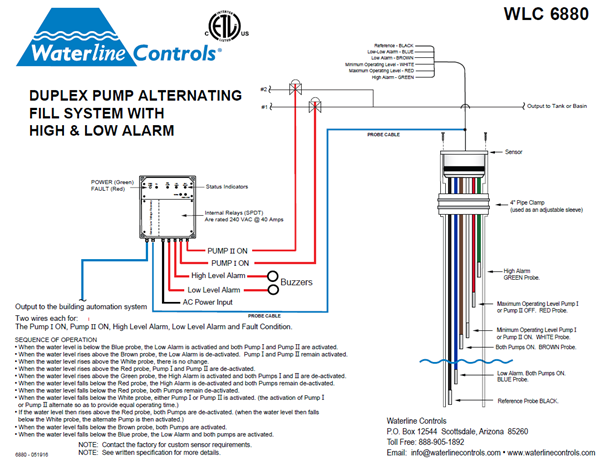

Flow Diagram
Warranty
Features
-
- Fill w/ High and Low Alarm
- Dry Contacts to BAS for measuring:
- Fill ON1
- Fill ON2
- High Alarm
- Low Alarm
- Fault conditions including power loss to the controls
- Operates any 110VAC valve & 110VAC audible alarm (Not supplied in this kit)
Usage
The WLC-6880 is used to alternate between two well pumps or supply pumps keeping a vessel filled to a desirable level. If for any reason a single pump cannot keep up with the fill rate needed, then the water in the tank will fall below the second trigger level, triggering the second pump. Both pumps will now operate until the tank has recovered completely. The High and Low alarms can be set to have audible alarms and/or visual alarms. This system has the capability of sending all the set point and activations data to the BAS using dry contacts closures as the signal trigger.
Description
The system monitors for a low water level condition and has 3 outputs which will:
-
- Close a set of dry contacts for a BMS
- Operate a relay rated at 30AMPS for 250VAC
- Turn on an LED to indicate thes sensor has tripped.
The Control Panel has visual displays indicating power to the level control panel, when the control panel is actively filling and the low and high water alarms. The Fill dry contacts can be used as a comparative to develop a baseline benchmark of water usage for the system.
*Custom Sensors lengths available upon request.
If you are a Reseller, Sales Organization, Distributor, Contractor or an OEM we want to talk with you to determine an SPA price program for your organization so please call us at 1(888) 905-1892 or contact us now.
PROUDLY MADE IN THE U.S.A.
All of our liquid level controls and liquid level sensors are assembled right here in the U.S.A.
where we monitor every step of the process.
