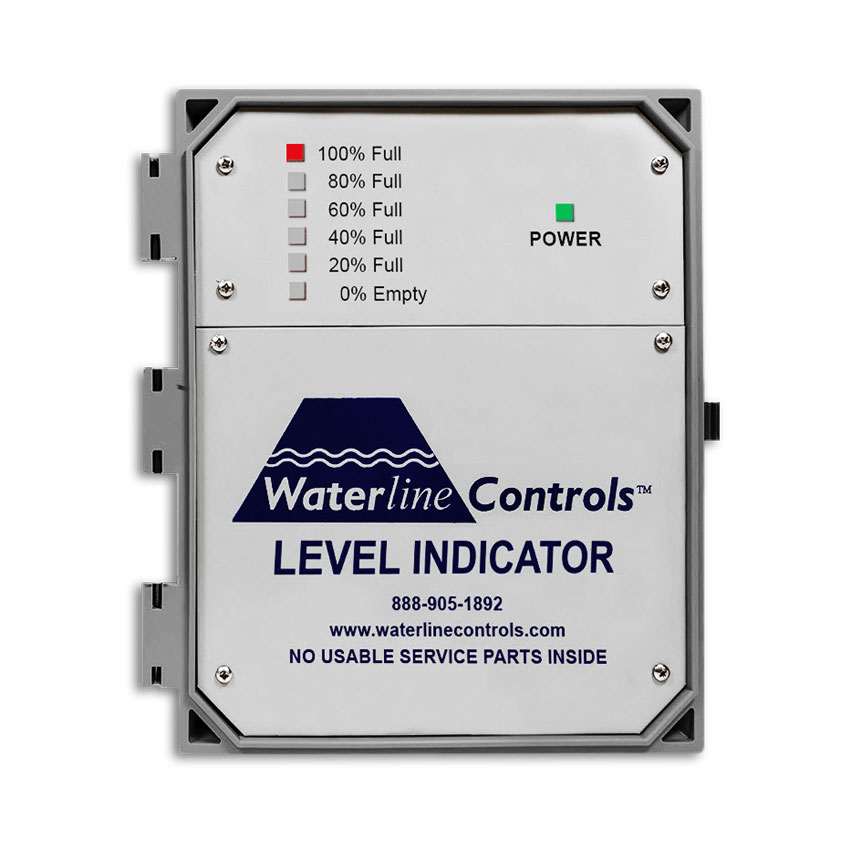

CP-WLI-WATER LEVEL INDICATOR-WLC-WLI
CP-WLI-WATER LEVEL INDICATOR-WLC-WLI
Reliable solution with little to no maintenance required no matter the water quality! Never Plates, Fouls or Deteriorates – We Guarantee it! Download the Approval Sheet To Submit With Your Order Here.
SPECIFICATIONS
- MODEL: WLC-WLI
- FUNCTIONS: Water Level Monitor and Indicator
- INPUT POWER: 110VAC Standard (24VDC, 24VAC, 240VAC available)
PANEL SPECIFICATIONS
- DPDT POWER RELAYS: 5
- DPDT POWER RELAY RATING: 120VAC @ 40A (N.O.) / 120VAC @ 30A (N.C.)
- SPST DRY CONTACTS FOR REMOTE SIGNALING (BMS, BAS, OR OTHER): 6
- SPST DRY CONTACT RATING: 24VDC @ .5A
- SPST DRY CONTACT FUNCTIONS: (1) Power-loss, (5) Control Functions
- LED INDICATORS: 6
- PRESS TO TEST: Yes
- AUDIBLE ALARM: Available upon request
- ALARM BEACON: Available upon request
- TEMPERATURE ALARM: Available upon request
ENCLOSURE SPECIFICATIONS
- RATING: NEMA 4X (Indoor/Outdoor)
- MATERIAL: Polycarbonate
- SIZE: L:10-1/2 ” W:9-1/2″ H:5″
- PANEL DOOR: Hinged, Non-Transparent (Clear available upon request)
- LATCH: Stainless Steel (Lockable latch available upon request)
- PANEL FACEPLATES: Aluminum
LEVEL PROBE SPECIFICATIONS
- PLUG STYLE: 3″ PVC Slip-Plug
- SENSOR HEAD MATERIAL: PVC
- SENSOR HEAD SIZE: 3″ diameter (round)
- PROBE MATERIAL: PVC Heat-Shrink, Stainless Steel
- PROBE LENGTH:
- 100% (Green) – High Alarm
- 80% (Red) – Full
- 60% (White) – 3/4
- 40% (Brown) – 1/2
- 20% (Blue) – 1/4
- 0% (Black) – Empty
- PROBES EXTENDABLE? Yes (18″/45.5″ Extension Kits available)
ACCESSORIES
- VALVES AVAILABLE: Jefferson (3/4″-2″) OCV Valve (2″-12″), Superior Valve (3/4″- 2″)
- EXTENSION ROD KITS
- AUDIBLE ALARM
- TOP OF PANEL BEACON
- H.O.A. SWITCHES
- REMOTE INDICATION PANELS
- LIGHT TOWERS
PACKAGING
- SHIPPING BOX DIMENSIONS:
WARRANTY
- 5-YEAR LIMITED WARRANTY
- LIFE OF PRODUCT TECHNICAL SUPPORT
PROUDLY MADE IN THE U.S.A.
All of our liquid level controls and liquid level sensors are assembled right here in the U.S.A.
where we monitor every step of the process.
