Wastewater Treatment Plant Systems

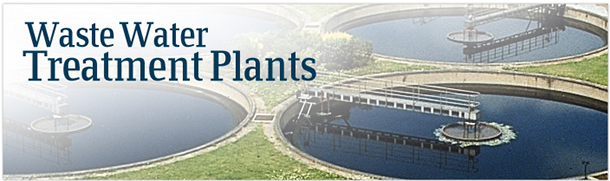

Wastewater Treatment Plant

Complete Water Level Control Systems

(Products listed for this category are below)

Well Water Holding TanksEvery model is designed to provide a 15-year average duty cycle with 1% failure rate and come with a Lifetime Limited Warranty. Even in the harshest conditions, Waterline Controls out-performs its competitors. This means you’ll get your money’s worth. The Water level management systems used in this application can be either pump up systems or pump down systems. Waterline Controls easily integrates with SCADA using dry contacts.

Additional Information

Electrical: Controls operate either 110VAC or 220VAC Internal Relay Contacts rated 40AMPS at 250Volts single phase or 3-phase and Dry Contacts for BMS are rated 0.5AMPS at 60Volts. These relays can be specified to be single phase or 3-phase contactors depending on your needs. Our Sensor assembly is Intrinsically Safe and extremely reliable no matter the environmental conditions.

Enclosure: 8-3/4” X 10-1/2″ X 6″ including the hinge and the latch. For indoor and outdoor use.

Category Products
WLC9000 Water Level Controller

Features

  • There is a time delay between sensing and Pump Down before initializing a pump or gate valve
  • The system has a time delay between sensing and the Secondary High Water Level pump or gate valve before initializing the relay to activate the Secondary High Water Level Pump Down System
  • The system has a time delay between sensing and the High Water Level Alarm before initializing the relay to activate the High Water Level Alarm
  • There is a switch to activate the test process and it will automatically cycle through the:
    • Pumping process
    • Secondary High Water Level Pump Down
    • High Water Level Alarm
WLC9000 Water Level Controller

Features:

  • Time delay between sensing and the Secondary High Water Level pump or gate valve, before initializing the relay, to activate the Secondary High Water Level Pump Down System
  • Time delay between sensing and the High Water Level Alarm before initializing the relay to activate the High Water Level Alarm
  • Switch to activate the test process to automatically cycle through the Pumping process, Secondary High Water Level Pump Down and the High Water Level Alarm
WLC8000 Water Level Controller

Features:

  • Fill With High alarm
  • For sump systems in commercial buildings
  • Operates any size pump
WLC700 Water Level Controller

Features

The system is comprised of a sensor and sensor housing with wire attached and installed at water level operating range, control panel mounted at a convenient location and a relay to operate a pump or gate valve.
